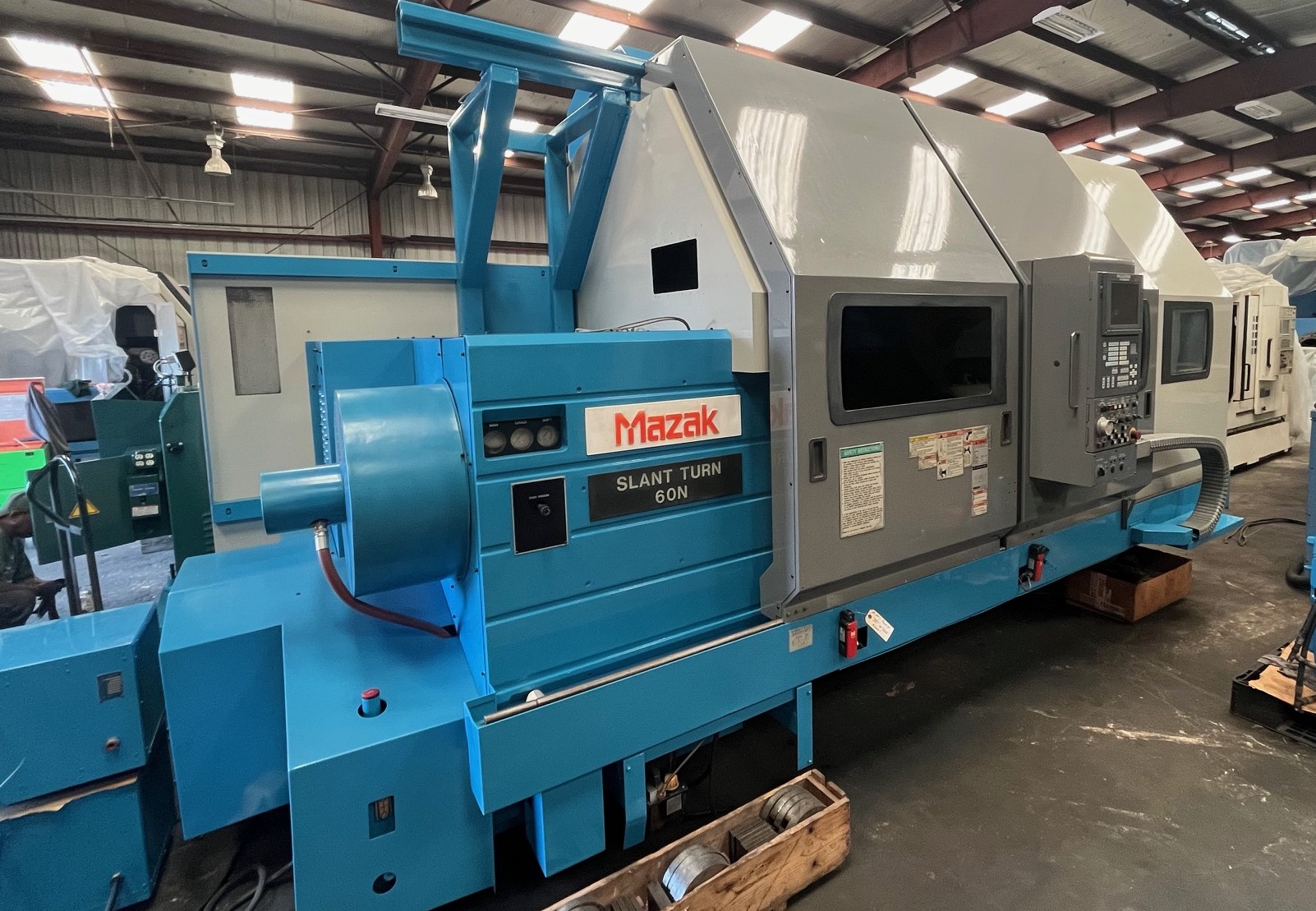

MAZAK SLANT TURN 60N CNC LATHE
Specifications:

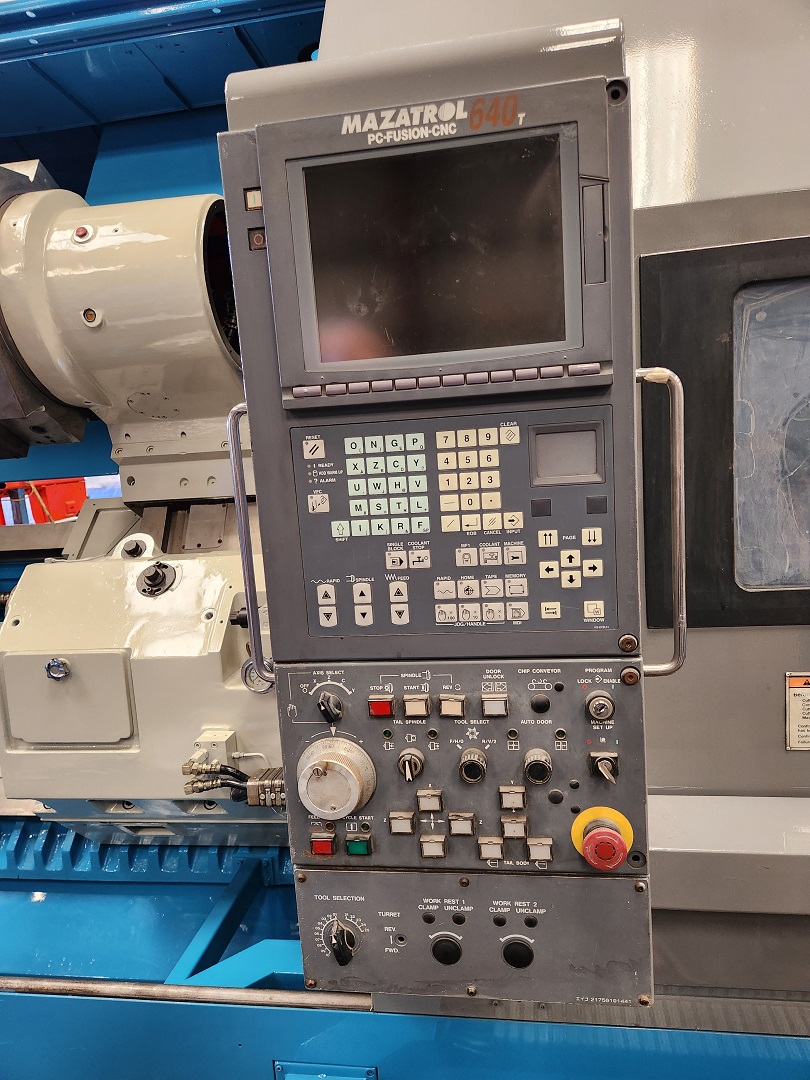

CNC control
Mazatrol Fusion 640T
Serial number
151754
Spindle speed
2--1000 RPM (4-ranges)
Maximum swing
36”
X-axis travel
25.3”
Turning diameter
28”
Z-axis travel:
80”

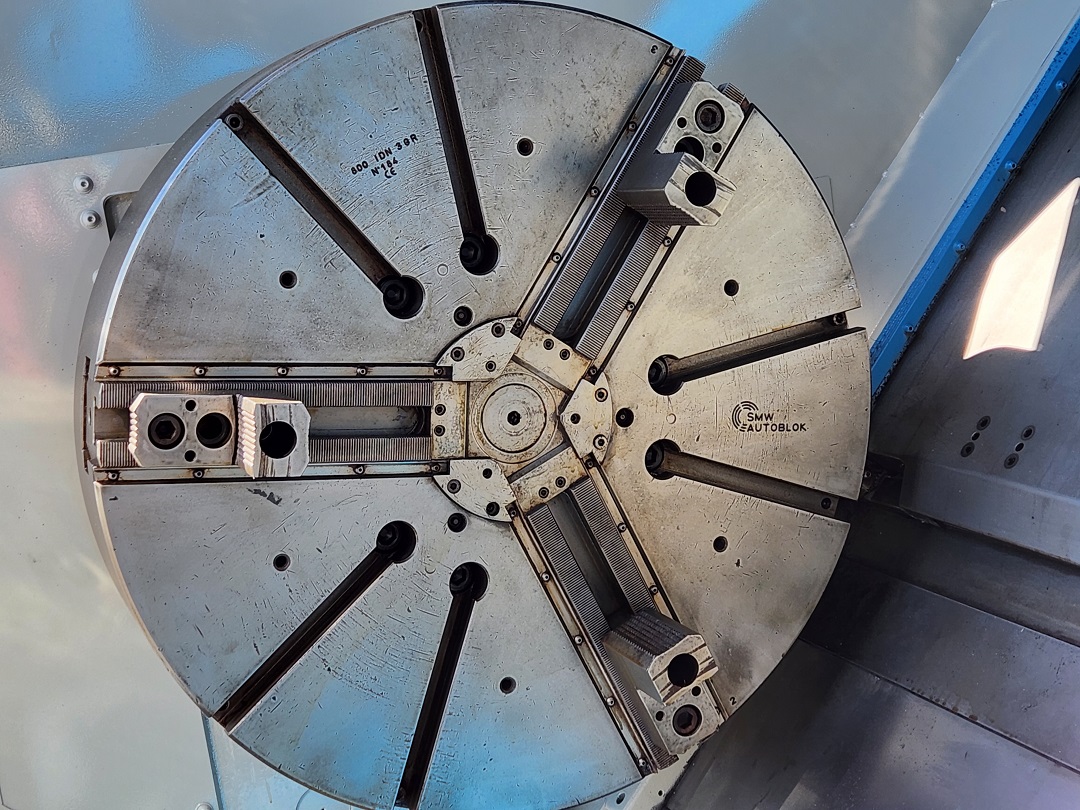

Chuck
32” SMW Autoblok 3-jaw hydraulic chuck
Spindle nose
A-2-11
Spindle bore
6 1/2”

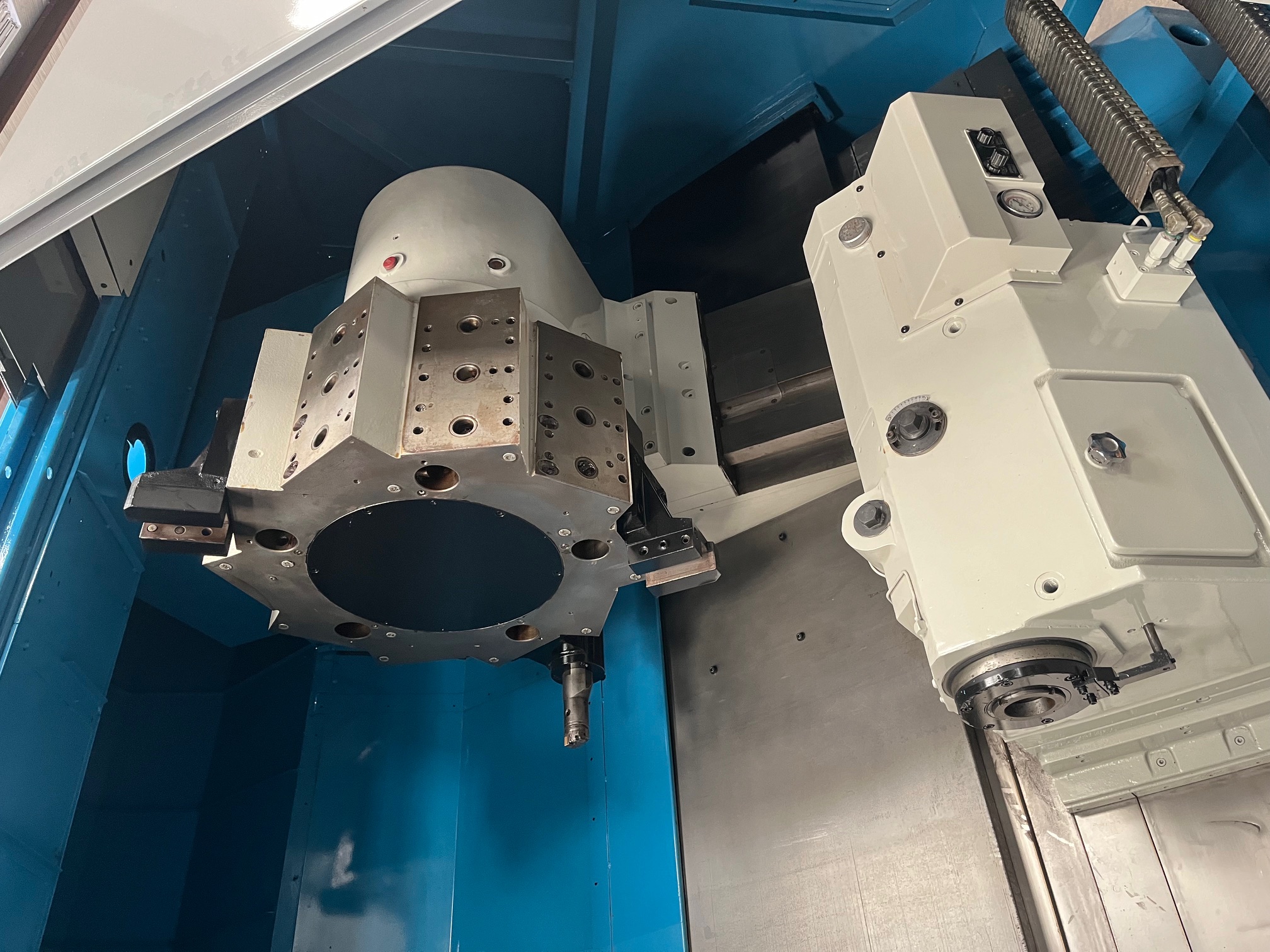

Turret capacity
(15) 10 OD plus 5 ID
Rapid traverse (X/Z
315/394 ipm
Tailstock body travel
70”
Tailstock quill diameter
7”, MT-6
Main drive
60 hp/45 kW

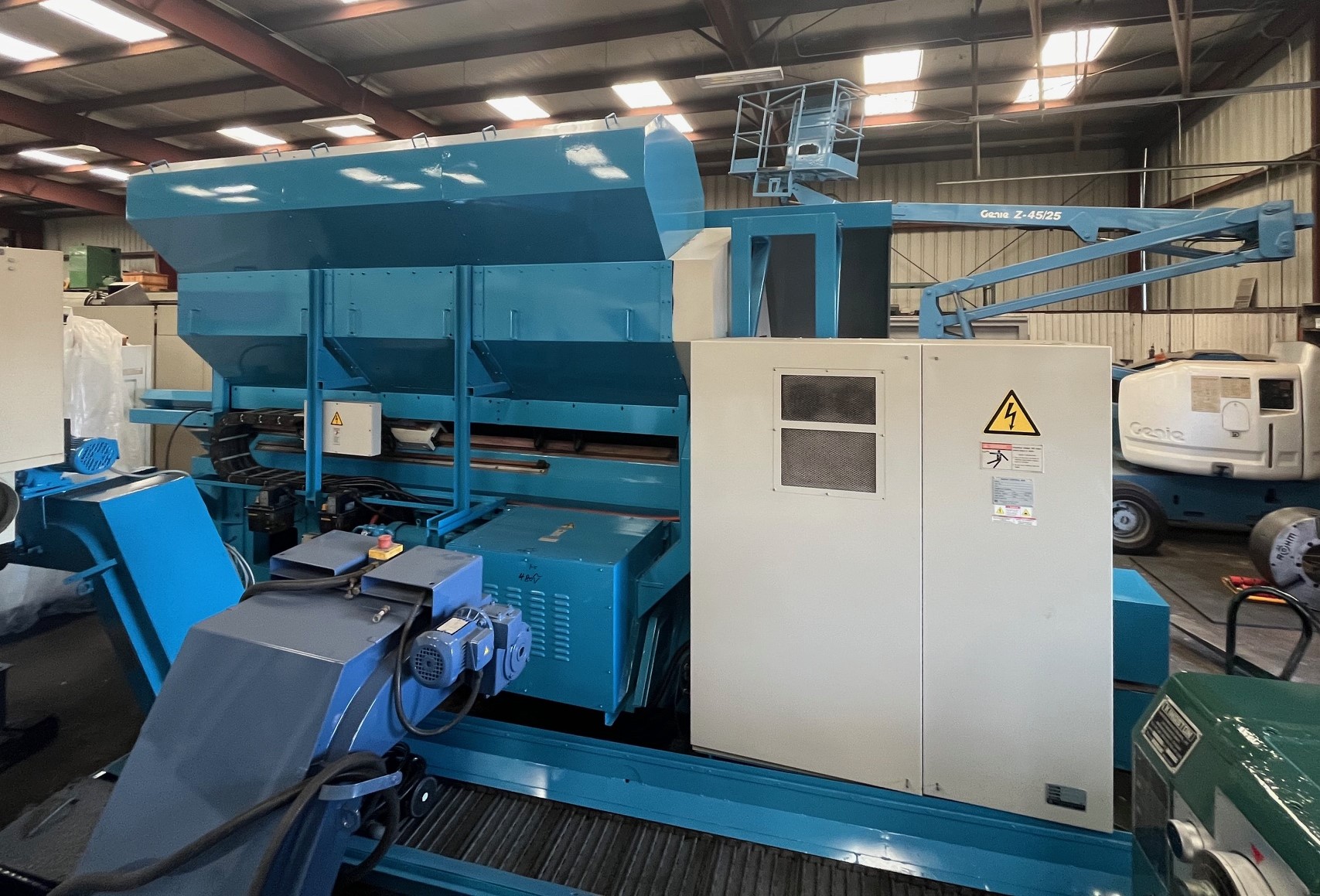

Chip conveyor
Yes
Weight
37,000 lbs.
Dimensions:
Lathe
20’ W x 10 4” H x 9’ 4” W
Chip conveyor
16’ W x 6’ H x 3’ 4” W
Price: $ 119,500. FOB Houston, TX. Subject to
Prior Sale.
Condition: Good to Very Good.
